OVEN

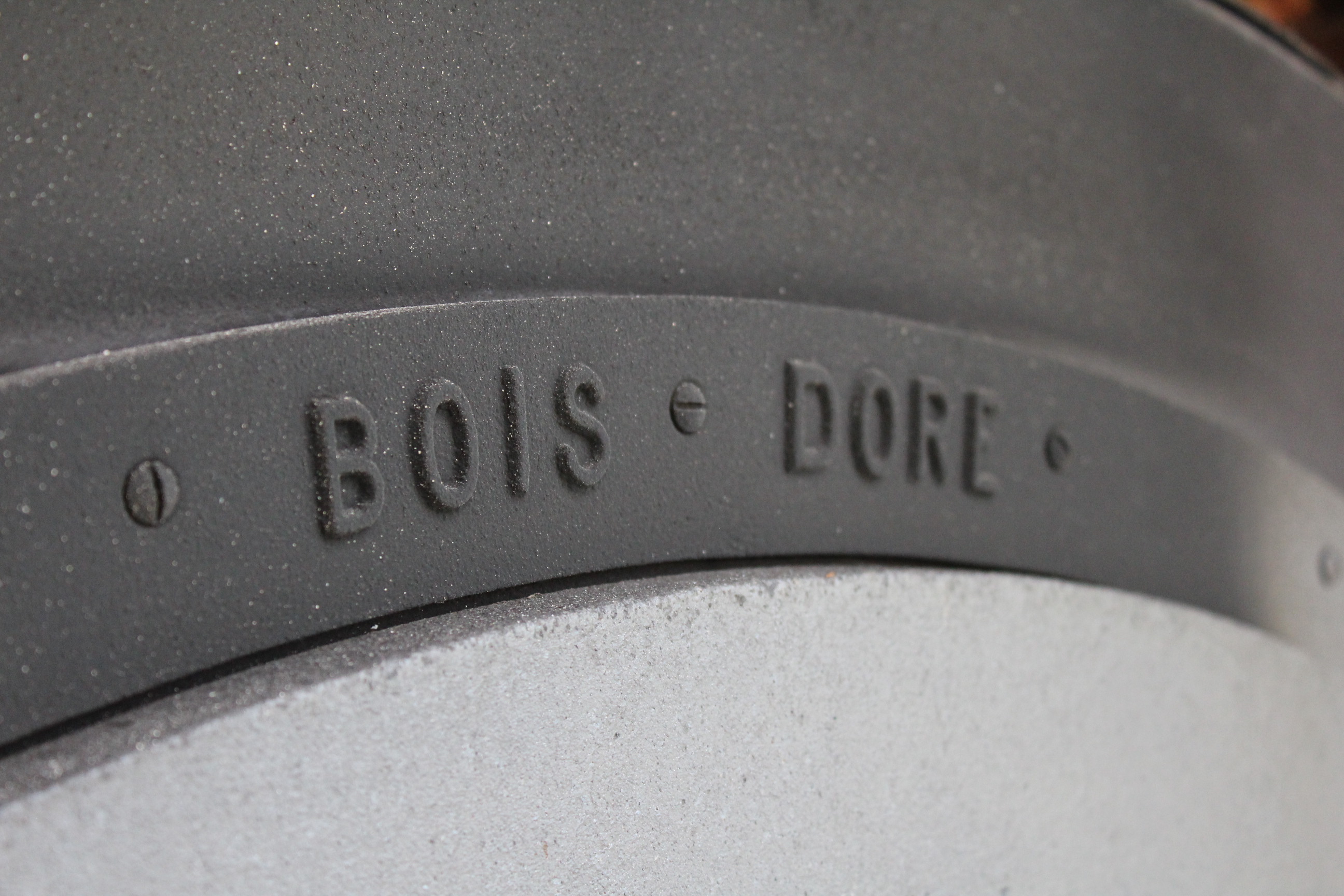

Our "BOIS DORE" ovens are available in different dimensions (technical data below).

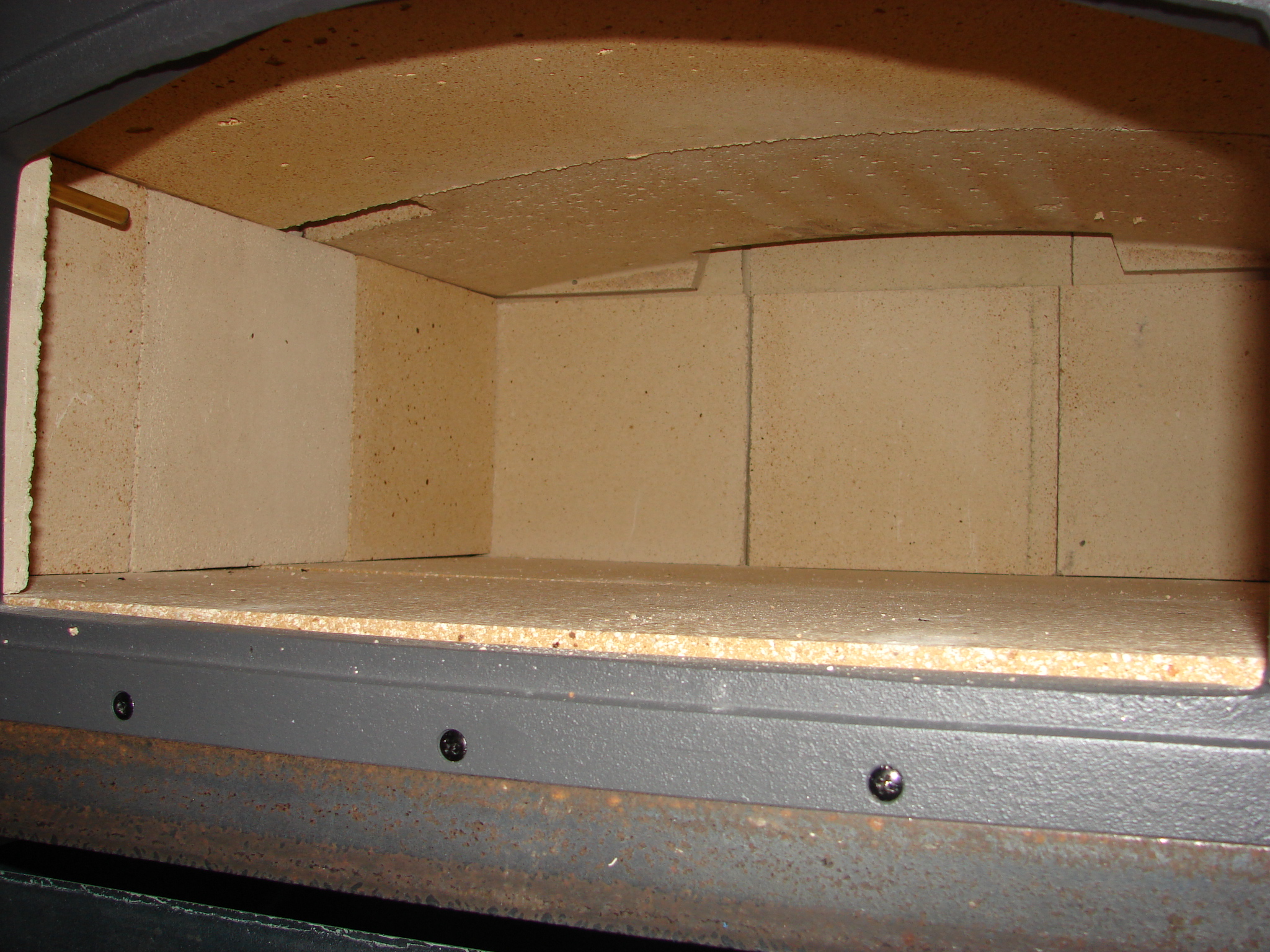

In addition to thick refractory stones, they are also insulated internally to increase thermal inertia.

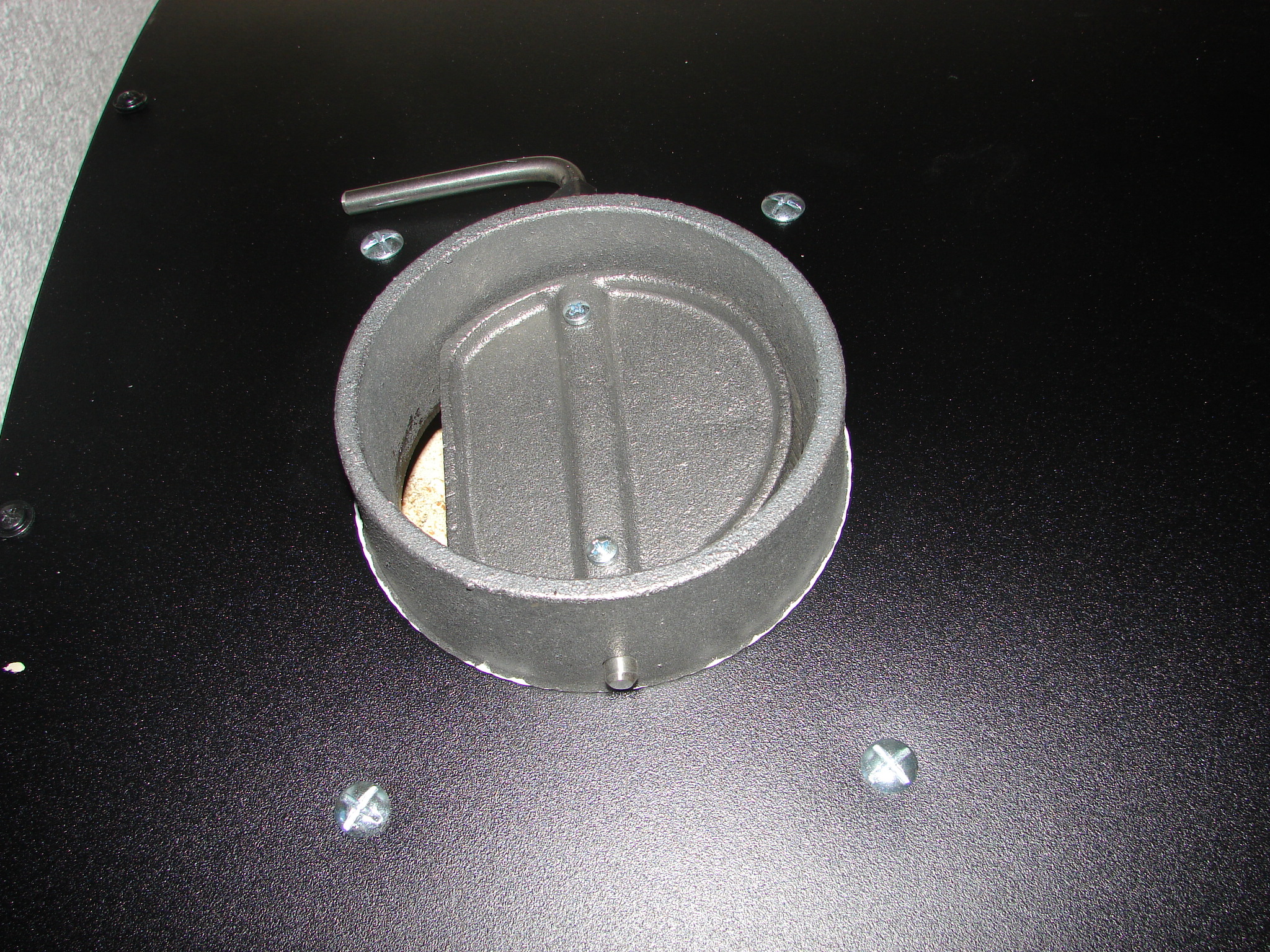

The ovens are easily and quickly installed. No special skills are required for assembly. After being connected to a 130mm flue they can be used immediately. They can also be placed on masonry units or on a cart (See "Support" and "Cart" section).
The choice of model depends on the desired use. It is a good idea to contact us in order to define together the oven best suited to your needs.
For installation on a terrace, the ovens can be installed under a shelter or covered with masonry.
TECHNICAL SPECIFICATIONS
All our sizes are in mm
(W = Width ; D = Deepth ; H = Height)
MODEL 600
External dimensions : 700 W x 685 D x 380 H
Internal dimensions : 600 W x 620 D x 215 H
Door : 335 W x 165 H
Window : 265 W x 90 H
Exit port : 130 mm
Weight : 180 Kg
4 - 6 Kg
1 pc
MODEL 700
External dimensions : 800 W x 745 D x 440 H
Internal dimensions : 700 W x 680 D x 240 H
Door : 435 W x 200 H
Window : 250 W x 85 H
Exit port : 130 mm
Weight : 220 Kg
2 pc
6 - 8 Kg
MODEL 700 L
External dimensions : 800 W x 1080 D x 440 H
Internal dimensions : 700 W x 1000 D x 240 H
Door : 435 W x 200 H
Window : 250 W x 85 H
Exit port : 130 mm
Weight : 330 Kg
8 - 10 Kg
4 pc
MODEL 700 XL
External dimensions : 800 W x 1400 D x 440 H
Internal dimensions : 700 W x 1330 D x 240 H
Door : 435 W x 200 H
Window : 250 W x 85 H
Exit port : 130 mm
Weight : 430 Kg
6 pc
12 - 14 Kg
MODEL 700 XXL
External dimensions : 800 W x 1730 D x 440 H
Internal dimensions : 700 W x 1660 D x 240 H
Door : 435 W x 200 H
Window : 250 W x 85 H
Exit port : 130 mm
Weight : 530 Kg
16 - 18 Kg
6 - 8 pc

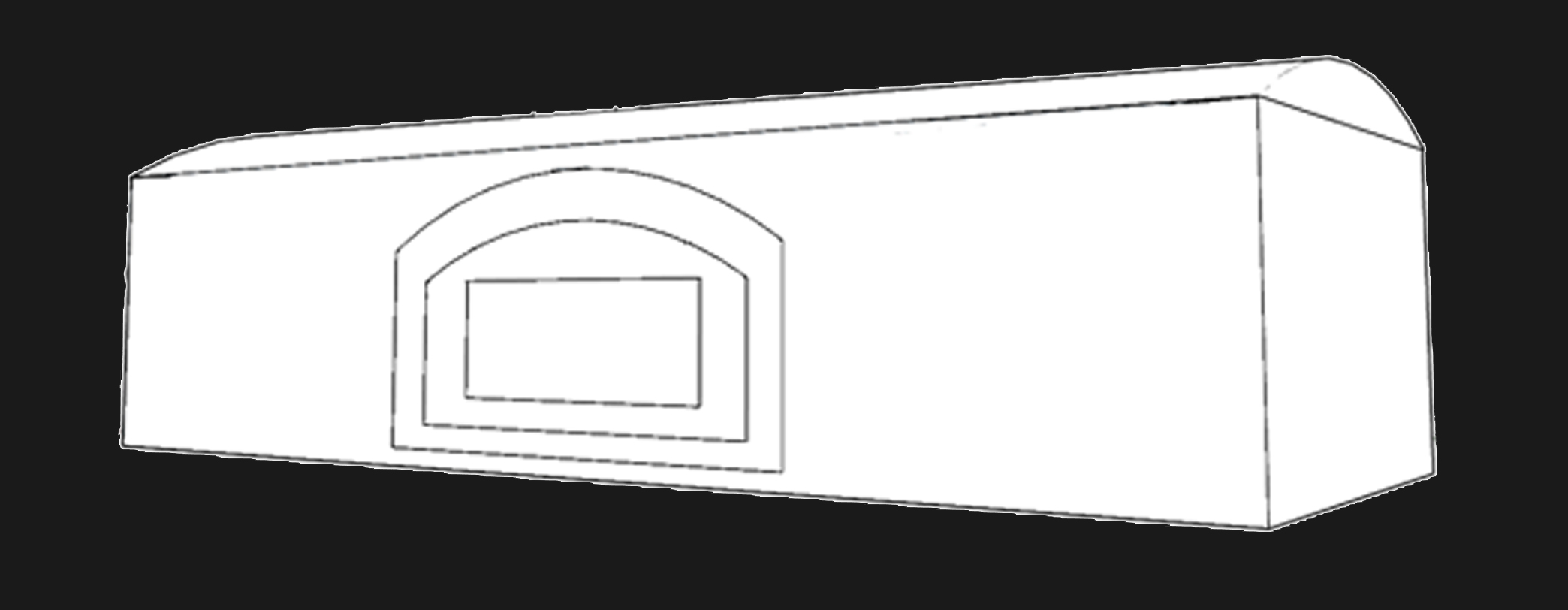

MODEL 700 XL SP
External dimensions : 800 W x 1400 D x 440 H
Internal dimensions : 700 W x 1330 D x 240 H
Door : 435 W x 200 H
Window : 250 W x 85 H
Exit port : 130 mm
Weight : 430 Kg
12 - 14 Kg
6 pc
